Compact USB-C PD charger

Made from 90% recycled plastics

Compact design

Up to 20W of charging power for laptops with a USB-C charging input

USB-C port for max. 20W PD and USB-A for max. 15W charging

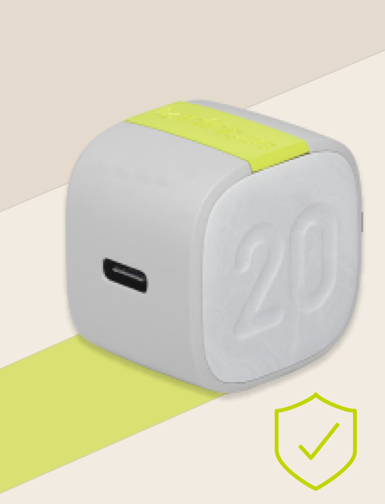

Peace of mind as you power up.

No need to stress about overheating, short-circuiting or overcharging while powering up.

It has auto protection.

  • Overvoltage Protection
  • Overcurrent Protection
  • Short-Circuit Protection
  • Over Temperature Protection
  • Surge Protection
  • Lightning Protection
360-degree microphone technology
Speak and hear like you're in the same room
Speak and hear like you're in the same room

Charge your device in the blink of an eye

Compact, pocket sized design

Eco materials and packaging

undefined
Made from 90% recycled plastics
Compact design
Up to 20W of charging power for laptops with a USB-C charging input
USB-C port for max. 20W PD and USB-A for max. 15W charging
undefined

Peace of mind as you power up.

No need to stress about overheating, short-circuiting or overcharging while powering up.

It has auto protection.

  • Overvoltage Protection
  • Overcurrent Protection
  • Short-Circuit Protection
  • Over Temperature Protection
  • Surge Protection
  • Lightning Protection

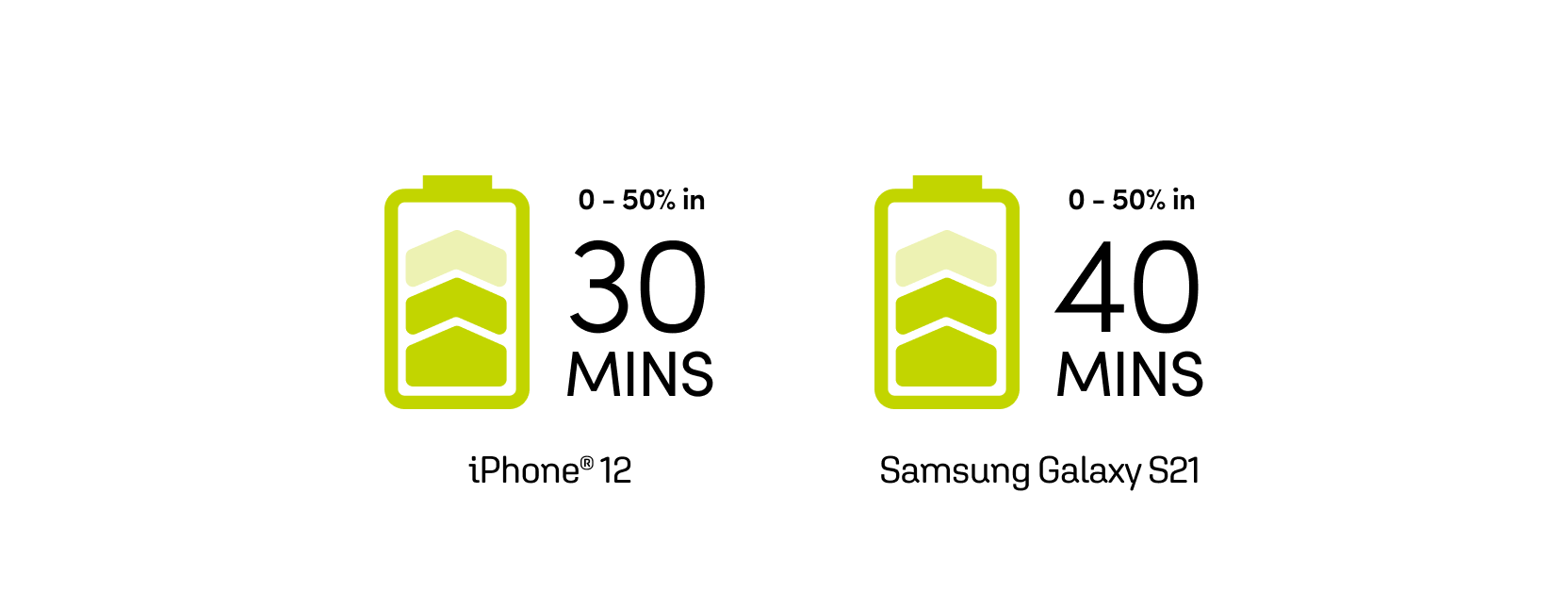

Charge your device in the blink of an eye
Power Delivery 3.0 ensures fast charging for your devices. We're talking recharged up to 50% in 30 minutes for an iPhone® 121 or 40 minutes for a Samsung Galaxy S211. Yes, that fast.
Compact, pocket sized design
Bulky, heavy chargers be gone. The high-speed InstantCharger 20W 1 USB is a lightweight power adapter. Perfect for people who don't want to be weighed down.
Eco materials and packaging
This is a more earth-friendly USB charger. With 90% recycled plastics and FSC-certified packaging printed with organic soy ink.

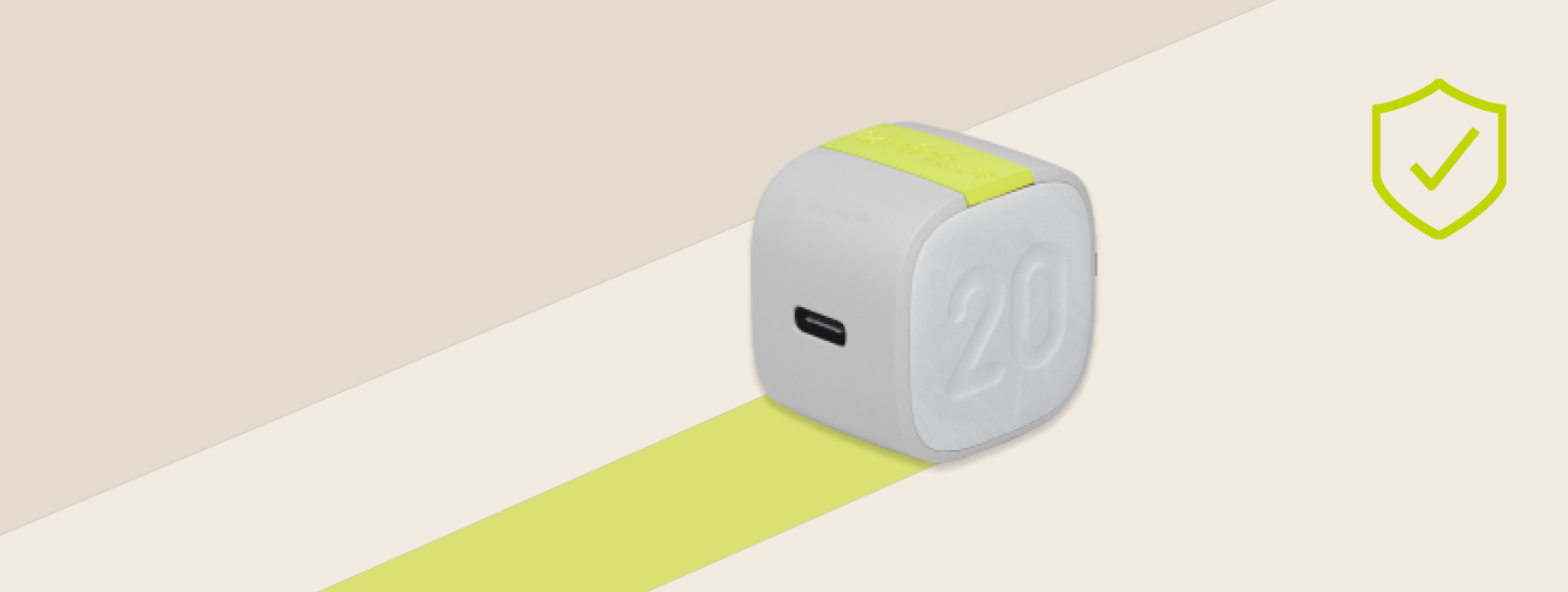

Advanced safety and reliability
The charger provides auto protection against overheating as well as overcurrent/overvoltage conditions and also provides surge protection.
The Details
Product description
Hit the road with the compact InstantCharger 20W 1 USB. This pocket-sized charger can fast charge a device with a USB-C cable, whether it’s a phone, power bank, camera, earbuds, or even your gaming console. Thanks to auto protection you'll never have to worry about your devices. And it’s made from recycled plastics and packaged in sustainable, earth-friendly materials. Travel light, wherever the journey takes you.
Tech specs
Output power
20.0W Max.
Operating temperature
0~45°C
Average active efficiency
Min. 82.09%
Efficiency at low load(10%)
Min. 75.28%
No-load power consumption
Max. 0.06W
Input
100-240V~, 50-60Hz, 0.6A
Max. Output
USB-C: 5.0V 3.0A,15.0W; 9.0V 2.22A, 20.0W; 12.0V 1.67A, 20.0 W
Dimensions (plug excluded) (W x H x D)
35 x 35 x 28 mm / 1.40 x 1.40 x 1.10 "
Weight
US: 42.0 g / 0.09 lbs
EU: 58.5 g / 0.13 lbs
UK: 65.0 g / 0.14 lbs
AU: 60.0 g / 0.13 lbs
What's in the box
- 1 x InstantCharger 20W 1 USB
- 1 x QSG
- 1 x Safety sheet
- 1 x Warranty card
Manuals &  downloads
FAQs

Does InfinityLab charger have surge protection?

Yes. InfinityLab charger is designed with surge protection to keep your devices safe.

What is the recommended operating temperature for InfinityLab charger?

For InfinityLab charger, the recommended operating temperature is between 0-45°C. This charger provides auto protection against overheating as well as overcurrent/overvoltage conditions. Therefore, when the operating temperature is outside the range, this charger will auto adjust the output powers to protect itself and your devices.

What products are compatible with InfinityLab charger?

It can fast charge almost anything with a USB-A or USB-C cable—phones, earbuds, power banks, cameras, even your laptop or gaming console.

Can InfinityLab charger charge my laptop?

100W, 65W and 30W InfinityLab chargers can fast charge USB-C equipped laptops. 100W charger supports laptops that require output power no more than 100W. 65W charger supports laptops that require output power no more than 65W. 30W charger supports laptop that require output power no more than 30W.

Does InfinityLab charger support fast charging? And what fast charging protocol that InfinityLab charger support?

The InfinityLab charger supports Power Delivery 3.0 to provide you with the fast charging experience.

How many devices can InfinityLab charger charge at the same time?

Depends on Charger model, from 1 device (20W), 2 devices (30W & 65W) to 4 devices (100W).

What is the max power for InfinityLab charger?

For 20W charger, the max. power output is 20W total. For 30W charger, the max. power output is 30W total. For 65W charger, the max. power output is 65W total. For 100W charger, the max. power output is 100W total. For 30W, 65W and 100W chargers, when charging more than one device simultaneously, total max. power output is 30W, 65W and 100W respectively. You can also check detailed power output information from specification on product page.

How InfinityLab charger distribute power when I charge multiple devices at the same time?

The InfinityLab charger has ""smart power distribution"" feature, it's smart enough to know how to allocate power, depending on which devices are plugged in. Take 65W charger as an example: If plug in only 1 USB-C device to this charger, the USB-C port can deliver max. 65W PD fast charging. If plug in one USB-C device and one USB-A device simultaneously to this charger, the USB-A port can deliver max.15W fast charging, and the USB-C port can deliver max. 45W PD fast charging.

Does InfinityLab charger include charging cable in the box?

Charging cable is not included in the box. You can purchase InfinityLab cable separately.

Is it normal for InfinityLab charger to get warm when I use it charging my devices?

Yes, it's normal to get warm during charging. The InfinityLab charger features over temperature protection to ensure your usage.

Can the LED light on InfinityLab charger be turned off?

The LED light will be on when the InfinityLAB charger is being powered and it is ready to charge your devices.
The LED light will be off when the power source is off.

Can I damage my device if the InfinityLab charger has a higher charge rating than my device?

The InfinityLAB charger will not damage your device while charging.

The InfinityLAB charger will deliver the power your device needs during charging, and the InfinityLAB charger features auto protection against overheating, overcurrent, and overvoltage

Can I use other exchangeable plugs in InfinityLab charger?

No, you should only use the InfinityLab US, UK and EU swappable plugs included in the packaging box.

Can InfinityLab charger be used in outdoor or wet enviroment?

The InfinityLab charger is not designed for wet environment. It is not waterproof, if it gets wet, there's a chance for short-circuit, which can cause damage to other electronics that you plug into them. Ensure that you keep your charger dry at all times.

Do I need a special USB Cable to charge my laptop with 65W & 100W wall chargers?

To deliver 65W PD charging to your laptop, you will need a USB-C to USB-C cable supporting minimal 3A current. To deliver 100W PD charging to your laptop, you will need a USB-C to USB-C cable supporting with E-Mark and supporting 5A current.

Can I always leave my charger in the wall?

It is fine to leave the InfinityLAB charger plugged in the wall outlet when you are not using it. However even without charging your device, the charger will consume a little bit of power when connected to an active power source.

To save energy, suggest unplugging it from the wall outlet if you won’t use the charger for a long time.

Can I leave my laptop connected to the charger?

Yes you can leave laptop connected to the charger even after it’s fully changed. The charger will charge your laptop again if needed.
Customer Reviews
Support & Warranty

Register your InfinityLab product

Do you own this product? Register it here in case you need to claim warranty

Can’t find what you’re looking for?

Are you looking for product support, documentation, how-tos or older products?


1. Charging times based on SGS testing using USB-C port and compatible charging cable. Actual user experience may vary depending on many factors, such as model, battery size, temperature, humidity, and condition and age of the device.
